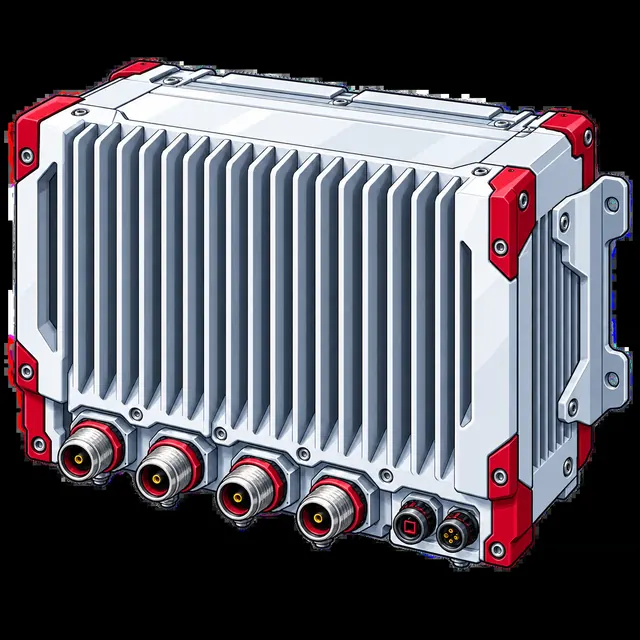

Huawei radio category illustration — Illustration

RRU5250

Name: Huawei RRU5250
Brand: Huawei

What it does: Converts and amplifies radio signals.

1 part number: 02312NEA

Viewing: model overview

Request a Quote

Request current availability, condition and pricing. Delivery terms are agreed in the quotation.

Additional technical information

Family: PN 02312NEA; Huawei BTS3900 / BTS5900 gNodeB RF module
For PN 02312NEA.
Weight: PN 02312NEA; 22 kg
For PN 02312NEA.
Installation environment: PN 02312NEA; Outdoor pole mounting and similar outdoor mounting
For PN 02312NEA.
Interfaces / connectors: PN 02312NEA; 2 × CPRI optical fronthaul ports
For PN 02312NEA.
Interfaces and data rates: PN 02312NEA; 2 × CPRI, 9.8/25 Gbit/s
For PN 02312NEA.
Power supply: PN 02312NEA; -48 V DC input; distribution power rating 1130 W
For PN 02312NEA.
Technologies: PN 02312NEA; TD-LTE and NR
For PN 02312NEA.
Operating RF bands / ranges: PN 02312NEA; TDD 2515–2675 MHz
For PN 02312NEA.
Uplink frequency: PN 02312NEA; 2515–2675 MHz (TDD)
For PN 02312NEA.
Downlink frequency: PN 02312NEA; 2515–2675 MHz (TDD)
For PN 02312NEA.
TX / RX modes: PN 02312NEA; 8T8R
For PN 02312NEA.
RF output power: PN 02312NEA; 8 × 40 W
For PN 02312NEA.
Bandwidth: PN 02312NEA; 160 MHz filter bandwidth / 160 MHz operating bandwidth
For PN 02312NEA.
Synchronization: PN 02312NEA; 02312NEA: In mode CPRI: clock signal recovery from the incoming line; frame synchronization from REC
For PN 02312NEA.
Chassis: PN 02312NEA; Self-contained outdoor RRU housing; equipment volume 22 L
For PN 02312NEA.
Functional role: PN 02312NEA; Multi-mode, multi-carrier remote radio unit
For PN 02312NEA.
Architecture: PN 02312NEA; Outdoor 8T8R TDD/NR remote radio unit with two 9.8/25 Gbit/s CPRI fronthaul interfaces and −48 V DC input
For PN 02312NEA.
Subtype: PN 02312NEA; 8T8R TDD RRU for 2515–2675 MHz
For PN 02312NEA.
Details: PN 02312NEA; Equipment volume: 22 L
