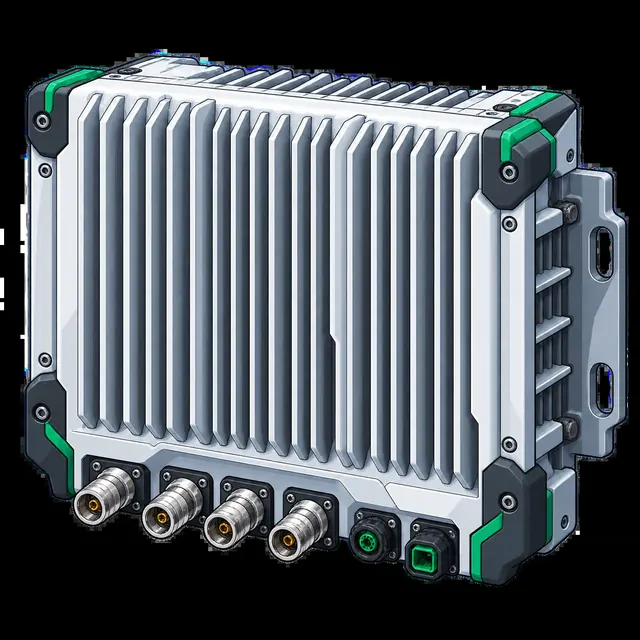

Ericsson radio category illustration — Illustration

RUS02B0

Name: Ericsson RUS02B0
Brand: Ericsson

What it does: Converts and amplifies radio signals.

1 part number: KRC161263/1

Viewing: model overview

Request a Quote

Request current availability, condition and pricing. Delivery terms are agreed in the quotation.

Additional technical information

Family: PN KRC161263 / 1; RUS02B0
For PN KRC161263 / 1.
Dimensions: PN KRC161263/1; 61 × 327 × 350 mm (W × D × H); volume 7 L
For PN KRC161263/1.
Weight: PN KRC161263/1; 7.3 kg
For PN KRC161263/1.
Installation environment: PN KRC161263/1; Vertical in 8U subrack; cabinet-installed radio
For PN KRC161263/1.
Interfaces and data rates: PN KRC161263/1; CPRI 2.5 Gbit/s; 2 × 7/16 DIN antenna ports; QMA RXA/RXB/co-site cross-connects
For PN KRC161263/1.
Power supply: PN KRC161263/1; -48 V DC
For PN KRC161263/1.
Operating RF bands / ranges: PN KRC161263/1; B0
For PN KRC161263/1.
Uplink frequency: PN KRC161263/1; 890–915 MHz
For PN KRC161263/1.
Downlink frequency: PN KRC161263/1; 935–960 MHz
For PN KRC161263/1.
TX / RX modes: PN KRC161263/1; 1T2R
For PN KRC161263/1.
RF output power: PN KRC161263/1; Maximum output 100 W
For PN KRC161263/1.
Bandwidth: PN KRC161263/1; IBW 25 MHz
For PN KRC161263/1.
Capacity: Maximum 8 carriers
Synchronization: PN KRC161263/1; When operated over its documented classic CPRI interface: CPRI slave synchronization; the radio recovers the incoming CPRI bit clock for radio/link transmission and receives time information from the REC/Baseband
For PN KRC161263/1.
Functional role: PN KRC161263/1; Cabinet-installed radio unit
For PN KRC161263/1.
Architecture: Radio Equipment (RE) side of a classic CPRI fronthaul; CPRI 2.5 Gbit/s; 2 × 7/16 DIN antenna ports; QMA RXA/RXB/co-site cross-connects; 1TX/2RX; clock and time are recovered from the REC/Baseband at the CPRI slave interface
Subtype: PN KRC161263/1; RUS-02 radio unit
For PN KRC161263/1.
