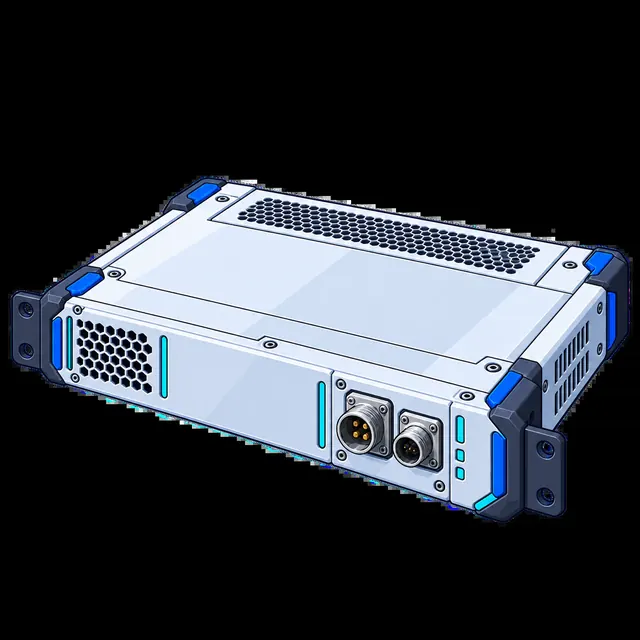

Nokia other category illustration — Illustration

FXEB

Name: Nokia FXEB
Brand: Nokia

What it does: Radio transmission / reception. Interfaces and data rates: 3 × SFP, 3 Gbit/s or 6 Gbit/s; 1 × RET; 1 × EAC.

2 part numbers: 472501A / 472501A.104

Viewing: model overview

Request a Quote

Request current availability, condition and pricing. Delivery terms are agreed in the quotation.

Main specifications

SubtypeFlexi RF Module 3TX 1800 MHz

DetailsRadio module Flexi 3TX 1800 MHz; GSM; FDD-LTE

FamilyFlexi

Interfaces / connectors6 × 7/16 ANT; 3 × SFP OPT; 1 × screw terminal DC IN; 3 × QMA RX; 1 × 8-circular contact RET; 1 × RJ45 EAC

Interfaces and data rates3 × SFP, 3 Gbit/s or 6 Gbit/s; 1 × RET; 1 × EAC

Power supplyNominal supply voltage: -48.0 V DC; Nominal input voltage range: -40.5 V DC to -57.0 V DC; Extended input voltage range: -36.0 V DC to -40.5 V DC -57.0 V DC to -60.0 V DC

Additional technical information

Installation environment: floor/stack installation; pole installation; wall installation; 19'' rack/cabinet
Weight: 25 kg (55.1 lb)
IP rating: IP65
Dimensions: Height: Core RFM: 115 mm (4.5 in.); Width: Core RFM: 420 mm (16.5 in.) Without front covers: 447 mm (17.6 in.) With front covers: 492 mm (19.4 in.); Depth: Core RFM: 400 mm (15.7 in.) Without front covers: 422 mm (16.6 in.) With front covers: 560 mm (22.1 in.)
Technologies: GSM; FDD-LTE
Operating RF bands / ranges: 1800 MHz
Uplink frequency: 1710-1785 MHz
Downlink frequency: 1805-1880 MHz
TX / RX modes: 3T6R
RF output power: 3 × 80 W
Bandwidth: iBW DL35 MHz GSM /50 MHz LTE;UL60 MHz
Capacity: GSM/EDGE: up to 18 TRX per RFM, 6+6+6 across three sectors; activation TRX license BSC00311
Synchronization: Synchronization from system module via OBSAI
Chassis: Radio module housing Flexi RFM
Modules: Integrated: RF control; 3 transmit paths with PA; 6 receive paths with LNA; TX/RX-filters; PSU; fan unit
Functional role: Base station radio frequency module
Architecture: Separate RF module (RF Module)
