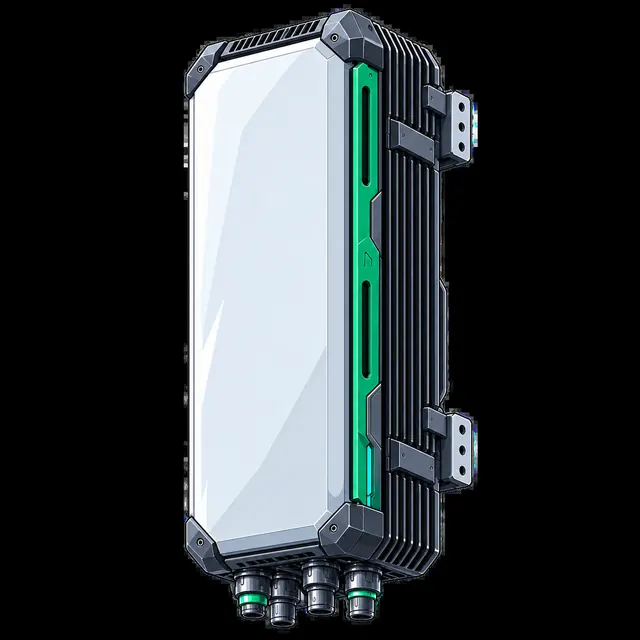

Ericsson aau category illustration
Illustration
Ericsson

AIR 32 B4A B2P

What it does: Radio transmission / reception. Operating RF bands / ranges: B4A; B2P.

1 part number: KRD 901 044/1

Viewing: model overview

Request a Quote

Request current availability, condition and pricing. Delivery terms are agreed in the quotation.

Main specifications

TechnologiesB4: W, L, MI; conditions: [3] ESS (Ericsson Spectrum Sharing) is a software feature. | [4] Lists support for the following standards: MI Cat-M1 (CM), MI NB-IoT in-band (IB), MI NB-IoT guard band (GB), and MI NB-IoT standalone (SA).
Operating RF bands / rangesB4A; B2P
Uplink frequencyActive B4: 1710–1755 MHz; passive antenna B2: 1850–1910 MHz
Downlink frequencyActive B4: 2110–2155 MHz; passive antenna B2: 1930–1990 MHz
TX / RX modes4T4R
RF output power4 × 30 W; conditions: [5] Requires HWACs (not valid for RUG). | [6] For information on possible power back off or band edge loss, contact Ericsson Technical Sales Support.
Interfaces / connectors4 × 7/16 female for passive antenna B2; 2 optical connections CPRI to integrated SFP; bayonet connector DC; grounding M8
Interfaces and data rates2 data port(s); cascading support: yes; different line rates on different ports: yes; CPRI line rates: 2.5, 4.9, 9.8 Gbps
Power supply−48 V DC, two-- or three-wire connection; optional power supply from AC via external PSU-AC 08
FamilyAIR 32
Installation environmentOutdoor pole or wall mounting; single or triple pole installation; optional mechanical tilt kit
Additional technical information
Dimensions
1439 × 327 × 220 mm (H × W × D)
Weight
48 kg
Bandwidth
B4: IBW 45 MHz; operational bandwidth 40 MHz; conditions: [95] 1.4 and 3 MHz LTE carriers within 20 MHz IBW. | [7] Operational bandwidth is the actual bandwidth allocated for carriers.
Capacity
AAS beam metric — TX: 4; RX: 4
Synchronization
When operated over its documented classic CPRI interface: CPRI slave synchronization; the radio recovers the incoming CPRI bit clock for radio/link transmission and receives time information from the REC/Baseband
Chassis
Integrated outdoor antenna and radio unit housing with front radome, rear fan tray and wall brackets/pole
Modules
Integrated RRUS 32A B4 (KRC118050/1), active antenna B4, passive antenna B2, integrated optics SFP; separately replaceable fan
Functional role
Ericsson RF radio product
Architecture
Radio Equipment (RE) side of a classic CPRI fronthaul; 2 data port(s); cascading support: yes; different line rates on different ports: yes; CPRI line rates: 2.5, 4.9, 9.8 Gbps; 4T4R; clock and time are recovered from the REC/Baseband at the CPRI slave interface
Subtype
Ericsson RF Radio Equipment using classic CPRI fronthaul; 4T4R
Details
Operating temperature −40…+55 °C; relative humidity 5–100%; active B4 and passive antenna B2
Connection notes
DU/Baseband via CPRI
